Camper van CORONA based on MB Sprinter

Sprinter CORONA

Caravan CORONA

The CORONA has a middle wheelbase and 4 sleeping places in the basic version. Below you will find all information about this caravan at the bottom of the tabs. Up to the equipment configurator with non-binding inquiry. At optical animated impressions we can offer you the following:

Imagine, by means of the combination possibilities of the fabrics up to the table, their model optically inside.
The interior illustration is exemplary of the LUXOR model.

Take a virtual tour of CORONA:

Standard equipment

120 kW/163 HP, 2,2 I CDI, Euro 6, 3,5 t, wheelbase 3665 mm, ESP, ABS, TCS, driver and passenger airbag, stabilizers front and rear, central locking with remote control, electrical outside mirrors, electrical window drivers, DPF, crosswind assist

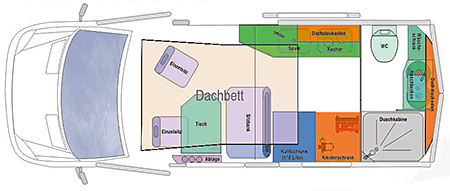

Motorhome CORONA overview Sketch

Technical data

Length:
5,91m
Width:
1,99
Height:
3,14m
Gross vehicle weight:
3.500 - 4.100 kg
Empty weight:
ca. 3.032 kg
Towing capacity:
2.000 - 3.500 kg
Fridge:
110 l
Heating/Boiling:
Truma Combi 4
Fresh water:
150 l heated
Waste water:
80 l heated
Board battery:
235 Ah Gel suitable for solar
Windows:
5 insulated fold-out windows with blinds and mosquito net, 1 tilt/slide sunroof
Gas bottles:
1x 5 kg and 1x 11 kg

The CS Corona is based on the Mercedes Sprinter with 3665 mm wheelbase, making it5.91 m long, 1.99 mwide and 2.70 m high.

The CDI engines start with 4 cylinders and 120 kW/ 163 HP. Finally, the strongest possible engine the Corona can be equipped with is a 3.0 I V6 CDI engine with 140 kW/190 HP.

All our vehicles come with particle filter and meet at least EURO 6. A 6-gear-transmission is standard but a 7-gear-automatic (or 5-gearfor four wheel drive) is also available.

Essential safety equipment like a new generation of ESP, ABS, TCR, driver/passenger airbags and crosswind assist are just as much standard as a remote controlled centrallocking system, electric windows and heated, side mirrors as weil as heat insulated glass in the driver's cabin. The Iist of further optional equipment is long and ranges from all-wheel-drive to all kind of assisting system to Xenon headlights. We deliver the Corona with a special chassis version with enhanced stabilizers and shock absorbers for even more safety while driving. The gross vehicle weight is 3,500 kg.

When creating the Corona, we set out to construct a high quality, technically flawless campervan while still keeping the vehicle as compact as possible. The outer measurements of 5.91 m x 1.99 m show that we accomplished that. The roof height is 3.14 m with a standard integrated panorama roof hatch.

The vehicle comes equipped with a heated double floor that houses the freshwater tank with a volume of 150 I as weil as the waste-water tank with a volume of ca. 80 I, as weil as the powerful GELon-board battery (235 Ah). The remaining storage area, which reaches from one side of the vehicle to the other, has a height of 34 cm and a depth of 1 00 cm, leaving ample space for storing I arger objects.

The wet room was built for maximum comfort. Equipped with a standard integrated shower (measuring 80 x 75 cm), as weil as aseparate area for the cassette toilet and a rather large washing table, all equipped with a hausehold tap. The wet room also comes with four storage closets for all the needed utensils. The entire surface of the wet room is coated with an extremely high quality and easy to maintain material. The standard shower consists of Corian.

Aside from a comfortable sanitary installation we also value high sleeping comfort. The roof ofthe Corona offers a roof bed with a hinge for optimal fitting. The bed is rear ventilated and rests on a cushioned construct. The bed measures ca. 210 cm x 150 cm. The space above the roof bed is about 70cm.

Our very comfortable bench can also be turned into a double bed with just a few steps. The seating area, consisting of the bench as weil as the cozy driver's cabin seats can easily be accessed even with the roof bed pulled down.

All our furniture is very flexible and uses only high-quality materials. The entire seating area rests upon a 5 cm thick double floor, which is used to Ievei the driver's cabin seats and the bench for one, and is also used as a way to transport heated air. This means that the vehicle comes as standard with a heated floor.

There are many storage possibilities with our Corona, such as a generous wardrobe, alongside cupboards for storing laundry and a kitchen area with plenty of drawers. Cooker and sink are lowered into the kitchen surface and come with standard glass covering and electric ignition. We also offer the option to install an oven in the kitchen area. ln the waist area we have installed a 11 0 I compressor-fridge with a large freezer. Above the fridge a cupboard houses the optional flat screen monitor.

The entire furniture is made of poplar plywood with a HPL-Iaminate. All furniture edges are processed with real wood. The working area and the table are also covered with HPL-Iaminate that matches the interior decor. Optionally the working area and washing table in the wet room can be made of Corian.

The on-board technology includes a 11 0 I fridge, a Combi 4 heating with warm water preparation by Truma (optionally available diesel-powered), a GEL-battery with a capacity of 235 Ah, a 30 A charger with IUoU characteristic and a 150 I freshwater tank. These, along with a large roof hatch and windows, all to be opened and with combination blinds and the best possible isolation are according to the very high quality standard we have for every single caravan.

The combination of quality, atmosphere, high quality standard equipment and the comfortable sanitary equipment make the Corona another unique vehicle of ours.

EquipmentStandard ▲
for additional charge o
not available −
120 KW / 163 hp, 2.2 l CDI Euro VI, ESP, ABS, ASR, driver/passenger airbag, 6-speed manual gearbox, side wind assist, central locking via remote control, electrical and heated mirrors, power windows, DPF, additional warm air heating, adjustable radio, steering wheel adjustable, driving lights assistant, armrests in the doors
Third brakelight, adaptive brakelight
Gross vehicle weight 3.500 kg
Gross vehicle weight 4.100 kg o
Enhanced stabilizers back and front
Mercedes standard raised roof
Raised roof (interior height ca. 230 cm)
Insulating glazed opening window (Seitz S6) coming with blind against light 5
Large roof in the living area
Isolation 20 mm X-trem Isolator
Cabinetry 15 mm poplar plywood with HPL-coating and real wooden strip
Cabinetry 15 mm poplar plywood with real wood veneer and real wooden strip o
Comfortseats incl. armrest, 2 pieces
Seating capacity 4
Sleeps in the fold-down bed / solid rear bed with 10 cm MDI cold foam mattress 2
Sleeping-places in bunk beds
Sleeping-places in converted seating bench 2
Wet room with shower, cassette-toilet and vanity
Wet room with separate shower, cassette-toilet and vanity
Wardrobe
Roof storage boxes
Storage box accesible from the outside
Kitchenpart with diesel-ceramic glass cooktop, sink, cutlery drawer, floor unit o
Kitchenpart with 2-flame cooker, sink, cutlery drawer, floor unit
Fridge Waeco 110 l
Gas facility with 2 gas bottles 5 u. 11 kg
Gasheating and waterheating Truma Combi4
Dieselheating and waterheating Truma o
Solar system 160 W o
Gel-boardbattery 235 Ah
Charging booster 45 A
Charging unit 30 A with IUoU-characteristic line
12 V facility at least 10 LED-lights, electronic regulated charging unit 30 A, sockets
230 V facility with 10 A fusing, ground fault inetrrupter and sockets
Outdoor lighting Raintec
Pressure water installation with Shurflo pump and single-handle faucet
Freshwater tank heated inside 150 l
Waste water tank heated inside 80 l
Waste water tank underfloor o
Standard paint basis vehicle:
arcticwhite - jupiterred - steelblue - bluegrey - deepblack
Unloaded weight /abt. kg (containing 75 kg for driver, filled gas tank and 20 l for fresh water) 3.032
Base price
75.700,00 €

All prices include 19 % VAT.
State 04/2018

Please click Clicking this Icon opens the picture view!

All prices include 19 % VAT.
standard: ▲
for additional charge: o.B.
not available: −
state 04/2018

If you wish to have your wish vehicle assembled, send us this mail and we will make you an offer!
ItemDescriptionImageKgPriceChoice
  CS CORONA standard equipment     75.700,00 €
MG3 Engine 2,2 l  120 kW/163 HP CDI Euro VI
MG5 Engine 3.0 l V6 140 kW/190 HP CDI Euro VI   21 3.975,00 €
B25 Parking brake, electrical; not available with CS040     345,00 €
C6L Multifunction steering wheel     179,00 €
CB8 Chassis package for increased stability; not available with ZG1/ZG3   3 515,00 €
CL2 Leather steering wheel and leather shift stick (manual transmission); only available with C6L     261,00 €
CL3 Leather steering wheel; only available with C6L, G42     215,00 €
CM0 Bumper painted; only available with LA3, JA7, JB6/JB7, incl. CN2     655,00 €
CN2 Radiator grill frame in vehicle colour     119,00 €
E07 Hill hold assistant (Standard with automatic)     112,00 €
E43 Trailer coupling power plug (standad with trailer coupling)   2 273,00 €
E1B Tray for smartphones incl. Wireless Charging; only available with FJ1, HH4/HH9   2 179,00 €
E1D Digital Radio (DAB)     238,00 €
E1E Navigation; only available with E3M     893,00 €
E1I Smartphone holster     89,00 €
E1O MB Audiosystem   2 144,00 €
E3M MBUX Multimediasystem with 7" touchscreen incl. C6L     561,00 €
E4M MBUX Multimediasystem with 10.25" touchscreen and navigation incl. C6L, JK5     2.441,00 €
ES5 Charge package for dashboard     119,00 €
ET4 Active distance keeping-assistant DISTRONIC; only available with G42, CL3, JK5, E3M/E4M     1.031,00 €
F49 Windscreen, heated; only available with H21, HH4/HH9     382,00 €
F64 Exterior mirror electr. adjustable     60,00 €
FG8 Cupholder front     36,00 €
FJ1 Gatefold cover for dashboard tray, center   1 112,00 €
FJ5 Gatefold cover for dashboard tray, right and left side; only available with FJ1   1 119,00 €
FK3 Radiator grill chromed; only available with CN2     274,00 €
FR3 Rearview camera with interior mirror display; only available with H21, not available with E3M/E4M   2 609,00 €
FR8 Rearview camera; only available with E3M/E4M   2 417,00 €
FZ5 Anti-theft warning system, incl. LC4     295,00 €
FZ9 Two additional vehicle keys     154,00 €
G42 7-Gear automatic transmission   38 2.504,00 €
H04 Heat-insulating driver's cabin     123,00 €
H12 Auxiliary hot-water heater for driver's cabin   7 1.022,00 €
H15 Heated seat for co-driver; only available with H16   225,00 €
H16 Heated seat for driver   225,00 €
H21 Band filter on windscreen     220,00 €
H81 Ventilation system with filter (incl. with air conditioning).     136,00 €
HH4 Automated air conditioning THERMOTRONIC incl. JF1   18 2.737,00 €
HH9 Semi-automatically controlled air conditioning TEMPMATIC   17 2.183,00 €
HY1 Remote control for the additional heating; only available with H12   433,00 €
JA7 Blind Spot Assistant; only available with F64     557,00 €
JA9 Traffic sign assistant; only available with E3M+E1E/E4M     351,00 €
JB4 Active Lane Keeping Assistant incl. C6L and H21     536,00 €
JB6 Parking Package with 360° camera; only available with E3M/E4M   2 1.607,00 €
JB7 Parking Package with rearview camera; only available with E3M/E4M   2 1.178,00 €
JF1 Rain sensor     131,00 €
JK5 Instrument cluster with pixel-matrix display     188,00 €
JW8 ATTENTION ASSIST     60,00 €
KB7 Main tank, 93 l (standard with FWD)   19 345,00 €
KL5 Fuel filter with water separator     193,00 €
L13 Fog lamps with cornering light function     246,00 €
LA1 Full beam assistant, incl. H21     339,00 €
LA2 Special colouring     549,00 €
LA3 Metallic colouring     1.735,00 €
LB1 Side marker lights     181,00 €
LB9 Exit lamps     100,00 €
LC4 Overhead control panel comfort in driver's cabin     115,00 €
LG7 LED High Perfomance-Headlamps   2 1.904,00 €
M46 Enhanced generator 14 V/220 A; only available with MG5   1 769,00 €
MS1 Cruise control, incl. C6L     343,00 €
P47 Front mud flaps   1 60,00 €
P48 Rear mud flaps   1 60,00 €
Q22 Trailer coupling ball head 2.0 t; only available with E07, LB1 for medium wheelbase   27 675,00 €
Q50 Trailer coupling removable ball head 2.0 t; only available with E07, LB1 for medium wheelbase   30 907,00 €
QA3 Vehicle pre-installation for trailer load up to 3.5t; only available with E43; only available with ZG1/ZG3   1 318,00 €
QA5 Vehicle pre-installation for trailer load up to 2.8 t; only available with E43   1 200,00 €
QA7 Trailer coupling 3.5 t; only available with E07, LB1 for medium wheelbase; not available with ZG1/ZG3   27 1.534,00 €
QA8 Trailer coupling 2.8 t; only available with E07, LB1 for medium wheelbase   27 1.416,00 €
R65 Spare wheel bracket below frame end   6 100,00 €
R87 Spare wheel, spare wheel bracket incl. hydraulic-jack   34 249,00 €
R98 Steel wheels in special paint finish black     85,00 €
RD8 Full wheel cover   3 85,00 €
RL5 Aluminium rims 6.5 x 16"     1.048,00 €
RM0 All season tyres     125,00 €
RM1 Winter tyres     194,00 €
RY2 Tyre pressure monitoring front/rear, wireless; not available with CS040     407,00 €
SH1 Thorax-Pelvis-Sidebag driver   1 438,00 €
SH2 Thorax-Pelvis-Sidebag co-driver; only available with SH1   1 308,00 €
SF1 Driver's seat electrically adjustable; only available with H16   2 1.223,00 €
SF2 Co-driver's seat electrically adjustable; only available with H15   2 1.223,00 €
SK0 Convenience head restraint, driver's seat     69,00 €
SK1 Convenience head restraint, co-driver's seat     69,00 €
SZ7 Stowage net in driver's seat armrest     57,00 €
SZ8 Stowage net in co-driver's seat armrest     57,00 €
T50 Electrical closing assist for sliding door   5 433,00 €
T55 Electrical operation of sliding door   9 1.200,00 €
T74 Handle for entrance sliding door     48,00 €
ZG1 Four wheel drive, engageable   141 10.289,00 €
ZG3 Four wheel drive, engageable with gear reduction   146 10.942,00 €
ZH4 Offroad Package (Hill descent DSR); only available with ZG3, MS1     447,00 €
CS020 Gross vehicle weight 3.500 kg
CS030 Gross vehicle weight 4.100 kg   4 2.130,00 €
CS040 Gross vehicle weight 5.000 kg   150
CS050 Independent Package (CS170, CS727) ommission gas system, KL1   15 3.232,00 €
D03 Standard high roof
CS120 High roof (inner height ca. 230 cm)
CS130 Roof painted in vehicle colour (twofold paintjob)     2.000,00 €
CS150 Large skylight -additional-   9
CS160 Electrical ceiling fan 40x40 cm -additional-   5
CS161 Electrical ceiling fan 40x40 cm instead of Mini Heki in wet room   1
CS170 Truma Combi D 6, diesel heating Truma Combi D 6, diesel heating 2 1.322,00 €
CS171 Heightkit for Truma Combi D 1500 - 2750 m Heightkit for Truma Combi D 1500 - 2750 m   660,00 €
CS172 Gas system with 2.8 kg gas bottle; only available with CS170 Gas system with 2.8 kg gas bottle; only available with CS170 -2 0,00 €
CS173 Gas cooker with 2.8 kg gas bottle instead of diesel cooker; only available for Independent
CS210 Furniture in real wood veneer beech     1.560,00 €
CS211 Real wood window frame (1 piece standard with real wood furniture) Real wood window frame (1 piece standard with real wood furniture) 1 288,00 €
CS212 Real wood window frame walnut Real wood window frame walnut 1 318,00 €
CS213 Solid wood folding table (beech, maple) Solid wood folding table (beech, maple) 3 319,00 €
CS214 Solid wood folding table (walnut) Solid wood folding table (walnut) 3 427,00 €
CS215 Decor vanilla /walnut Decor vanilla /walnut   650,00 €
CS216 Decor maple /walnut Decor maple /walnut   650,00 €
CS250 2 additional beds in the cargo room, incl. mattresses 6cm   20
CS260 Mattress 10 cm for additional bed, each   8
CS261 Single mattress latex, each   4
CS262 Single mattress visco-foam, each   4
CS263 Rear bed mattress latex   6
CS264 Read bed mattress visco-foam   6
CS265 Roof bed mattress latex   6 510,00 €
CS266 Roof bed mattress visco-foam   6 510,00 €
CS270Additional window, each Additional window, each
CS330 Single seat in seating area Single seat in seating area   o.B.
CS341 SKA 1800 seat with 2 armrests, each SKA 1800 seat with 2 armrests, each 17 1.690,00 €
CS350 Bench 501, width 85 cm (2 seats) Bench 501, width 85 cm (2 seats) 16 245,00 €
CS351 Bench 506, width 85 cm (2 seats) with integrated three-point-seatbelt Bench 506, width 85 cm (2 seats) with integrated three-point-seatbelt 30 895,00 €
CS355 Bench 501, width 60 cm (1 seat) Bench 501, width 60 cm (1 seat) 12 245,00 €
CS360 Vario bench, width 90 cm, convertible to a bed (omission bottle holder) Vario bench, width 90 cm, convertible to a bed (omission bottle holder) 40 1.353,00 €
CS361 Enlargement cushion for Vario bench Enlargement cushion for Vario bench 2 232,00 €
CS380 Temporary guest bed designed for situatinal use; not with single seat or 60cm bench - Tutorial- Temporary guest bed designed for situatinal use; not with single seat or 60cm bench 5 374,00 €
CS385 Lifting mechanism for right-side rear bed Lifting mechanism for right-side rear bed 20 1.071,00 €
CS410 Waste water tank below vehicle
CS411 Additional interior waste water tank (only for sink waste water) Additional interior waste water tank (only for sink waste water) 6 646,00 €
CS420 Additional fresh water tank below vehicle, ca. 60l; not available with CS650 with standard high roof vehicle   10 758,00 €
CS440 Underfloor heating in vehicle front Underfloor heating in vehicle front 10 1.350,00 €
CS515 2 additional speakers in the back 2 additional speakers in the back 2 350,00 €
CS551 Rear view camera WAECO CAM 44 (with double lens camera) with 5” LCD monitor Rear view camera WAECO CAM 44 (with double lens camera) with 5” LCD monitor 1 1.407,00 €
CS582 Automatic SAT system Digital Cytrac; only available with CS591 Automatic SAT system Digital Cytrac; only available with CS591 17 2.925,00 €
CS591 TFT monitor alphatronics 19" 16:9 (LED) with DVD-Player and DVBT antenna TFT monitor alphatronics 19” 16:9 (LED) with DVD-Player and DVBT antenna 5 1.180,00 €
CS592 Sinus inverter 300W, prioritized   2 578,00 €
CS593 Sinus inverter 1200W, prioritized 6 1.411,00 €
CS594 Sinus inverter 1700W, priotirized Sinus inverter 1700W, priotirized 8 1.597,00 €
CS620 2x 100 Ah lithium battery instead of standard gel battery 2x 100 Ah lithium battery instead of standard gel battery -30 3.323,00 €
CS625 Votronic charge booster VCC1212 45 (45A)
CS630 Solarpanel system 80 W MT Solarpanel system 80 W MT 6 958,00 €
CS640 Solarpanel system 160 W MT Solarpanel system 160 W MT 12 1.591,00 €
CS641 Solarpanel system 240 W MT Solarpanel system 240 W MT 18 2.209,00 €
CS650 electrical entry step "Omnistep" for entry sliding door electrical entry step ”Omnistep” for entry sliding door 13 666,00 €
CS710 Gas socket Gas socket   259,00 €
CS711 Outdoor shower Outdoor shower   259,00 €
CS722 Washstand in wet room made of Getacore Washstand in wet room made of Getacore 3
CS723 Worktop in kitchen made of Getacore Worktop in kitchen made of Getacore 5 1.850,00 €
CS724 Shower base made of Getacore Shower base made of Getacore 7 760,00 €
CS725 SMEV grill SMEV grill 5 739,00 €
CS726 Truma gas filter, each Truma gas filter, each 1 165,00 €
CS727 Webasto diesel ceramic cooking surface Webasto diesel ceramic cooking surface 9 2.222,00 €
CS750 Truma Duo Control CS Truma Duo Control CS 1 162,00 €
CS755 Truma Mono Control CS Truma Mono Control CS 1
CS810 Bike carrier for 2 bikes Bike carrier for 2 bikes 5 601,00 €
CS822 Bike carrier "Carry Bike Lift" Bike carrier "Carry Bike Lift" 17 990,00 €
CS823 Bike carrier "Slide-Move"; only available with E43 Bike carrier "Slide-Move"; only available with E43 35 1.861,00 €
CS825 Rear ladder Rear ladder 10 734,00 €
CS880 Mosquito net in sliding door Mosquito net in sliding door 1 412,00 €
CS840 Base carrier for surfboard holder, each side   1
CS855 All terrain tyres BF Goodrich 245/75 R16; only available with ZG1 / ZG3, CS020 All terrain tyres BF Goodrich 245/75 R16; only available with ZG1 / ZG3, CS020   1.405,00 €
CS860Security package (additional locks on doors and interior chain for driver's cabin door) Security package (additional locks on doors and interior chain for driver's cabin door))4 886,00 €
CS870C-rails for roof rack C-rails for roof rack6 465,00 €
 Awning length   3,25 m
CS910Awning, white Awning, white28 1.102,00 €
CS911Awning, silver  28 1.174,00 €
CS912Awning, anthrazite Awning, anthrazite28 1.174,00 €
CS930Safe below co-driver's seat Safe below co-driver's seat2 232,00 €
CS940 SOG venting for toilet SOG venting for toilet 1 345,00 €
AG12 New vehicle warranty extension 12 months, only with CS020/CS030     990,00 €
AG24New vehicle warranty extension 24 months, only with CS020/CS030     1.950,00 €

Personal details:

* Compulsory field

Data protection regulations and data safety

Our precautionary measures for protecting your data is on the highest level of technology. We do not collect any personal data in our homepage without your agreement. It is only on you to decide if you let us know e.g. your e-mail adress or your adress so that we can get in touch with you for answering your questions or giving some special informations / offers to you. The data will be treated in strict confidence and will not be given to third parties. We will delete your data if you wish to.

Model CORONA
Model CORONA
Model CORONA
Model CORONA
Model CORONA
Model CORONA
Model CORONA

Please click on the pictures for a bigger image.The pictures show different endowments. Every vehicle is built individually after your wishes!

Take a virtual tour of the CORONA:

Scroll in the online prospectus dated CORONA:

Here you can download our current information for the CORONA:

Adobe Acrobat Reader
To view the PDF files you need, if not yet available, the Acrobat Reader

motorhomes campers vans expansion MB Sprinter Caravan camper four-wheel drive 4x4 Offroad
